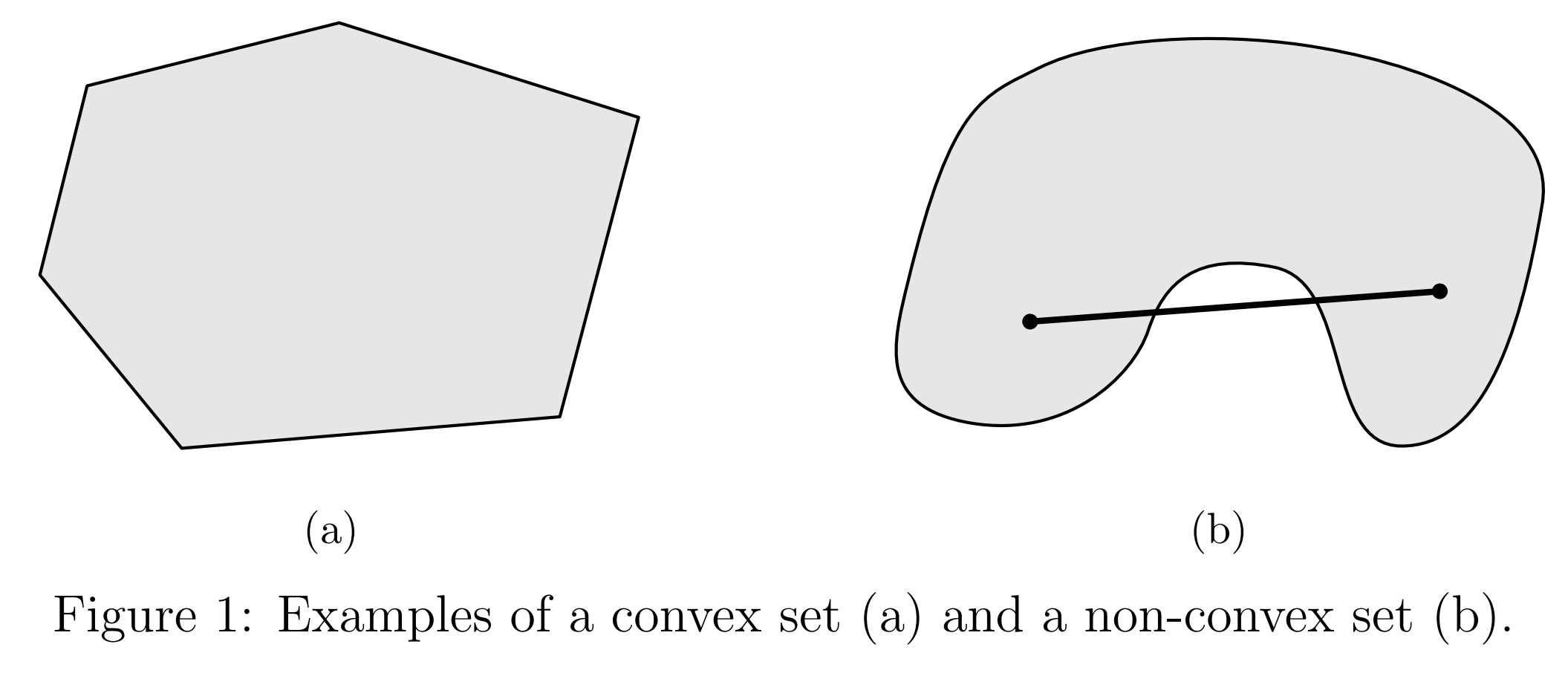

Convex Set

The convex set is¹:

Here is a property of the convex set $C$:

Given $k$ points $x_1,x_2,\cdots,x_k$ in the convex set $C$, and $k$ non-negative numbers $\theta_1,\theta_2,\cdots,\theta_k$ (i.e. $\theta_k\ge0$ for all $i=1,\cdots,k$) such that $\theta_1+\theta_2+\cdots+\theta_k=1$, then the affine combination

a.k.a. a convex combination, also belongs to $C$².Furthermore,

• when $k=2$, the combination is actually the definition of convex set $\eqref{eq1}$.
• it can also be said that, a set is convex if and only if it contains every convex combination of its points³.

There are some classic convex sets¹:

(1) All of $\mathbb{R}^n$

For any $\boldsymbol{\mathrm{x}},\boldsymbol{\mathrm{y}}\in\mathbb{R}^n$, $0\le\theta\le1$:

(2) The non-negative orthant, $\mathbb{R}_{+}^n$.

The non-negative orthant consists of all vectors in $\mathbb{R}^n$ whose elements are all non-negative, i.e. \(\mathbb{R}_{+}^n=\{\boldsymbol{\mathrm{x}}: x_i\ge0,\forall i=1,\cdots,n\}\). For any \(\boldsymbol{\mathrm{x}},\boldsymbol{\mathrm{y}}\in\mathbb{R}^n_{+}\) and $0\le\theta\le1$, we have:

because $x_i,y_i,\theta,(1-\theta)$ are all greater than or equal to zero. Therefore, we can say:

And similarly, we can prove that the non-positive orthant is also a convex set.

(3) Norm balls⁴

The set \(\{\boldsymbol{\mathrm{x}}:\vert\vert\boldsymbol{\mathrm{x}}\vert\vert\le1\}\), where $\vert\vert\cdot\vert\vert$ is a norm, is a convex set. Let any $\boldsymbol{\mathrm{x}},\boldsymbol{\mathrm{y}}\in\mathbb{R}^n$, with $\vert\vert\boldsymbol{\mathrm{x}}\vert\vert\le1$, $\vert\vert\boldsymbol{\mathrm{y}}\vert\vert\le1$, and $0\le\theta\le1$, then we have:

This proof relies on the “triangle inequality” and “absolute homogeneity” of norms⁵. Similarly, we can make a generalization that, the set \(\{\boldsymbol{\mathrm{x}}:\vert\vert\boldsymbol{\mathrm{x}}\vert\vert\le k\}\), where $k\ge0$, is a convex set.

(4) Affine subspaces and polyhedra

Given a matrix $\boldsymbol{\mathrm{A}}\in\mathbb{R}^{m\times n}$ and a vector $\boldsymbol{\mathrm{b}}\in\mathbb{R}^m$, an affine subspace is the set \(\{\boldsymbol{\mathrm{x}}\in\mathbb{R}^n:\boldsymbol{\mathrm{A}}\boldsymbol{\mathrm{x}}=\boldsymbol{\mathrm{b}}\}\) (the set can be empty, if $\boldsymbol{\mathrm{A}}\boldsymbol{\mathrm{x}}=\boldsymbol{\mathrm{b}}$ has no solution from the perspective of solving equation system). Similarly, a polyhedron is the set \(\{\boldsymbol{\mathrm{x}}\in\mathbb{R}^n:\boldsymbol{\mathrm{A}}\boldsymbol{\mathrm{x}}\preceq\boldsymbol{\mathrm{b}}\}\) (again, the set can be empty), where “$\preceq$” denotes component-wise inequality (i.e. each element of $\boldsymbol{\mathrm{A}}\boldsymbol{\mathrm{x}}$ is less than or equal to the corresponding element in $\boldsymbol{\mathrm{b}}$)⁶. We can prove that, affine subspaces and polyhedra are convex set.

For $\boldsymbol{\mathrm{x}},\boldsymbol{\mathrm{y}}\in\mathbb{R}^n$ such that $\boldsymbol{\mathrm{A}}\boldsymbol{\mathrm{x}}=\boldsymbol{\mathrm{A}}\boldsymbol{\mathrm{y}}=\boldsymbol{\mathrm{b}}$, then for $0\le\theta\le1$:

i.e.

And similarly for $\boldsymbol{\mathrm{x}},\boldsymbol{\mathrm{y}}\in\mathbb{R}^n$ such that $\boldsymbol{\mathrm{A}}\boldsymbol{\mathrm{x}}\preceq\boldsymbol{\mathrm{b}}$, $\boldsymbol{\mathrm{A}}\boldsymbol{\mathrm{y}}\preceq\boldsymbol{\mathrm{b}}$, and $0\le\theta\le1$:

i.e.

(5) Intersections of convex sets

Suppose that $C_1,C_2,\cdots,C_k$ are convex sets, then their intersection

is also a convex set. It’s obvious. But it should be noted that, the union of several convex sets is not necessarily a convex set.

(6) Positive semidefinite matrices

The set of all symmetric positive semidefinite (PSD) matrices, a.k.a. positive semidefinite cone $\mathbb{S}_{+}^n$⁷, is a convex set. Consider two symmetric positive semidefinite matrices \(\boldsymbol{\mathrm{A}},\boldsymbol{\mathrm{B}}\in\mathbb{S}_{+}^n\) and \(0\le\theta\le1\), then for any $\boldsymbol{\mathrm{x}}\in\mathbb{R}^n$ we have:

i.e.

In the same way, we can prove that, the sets of all positive definite (PD) $\mathbb{S}_{++}^n$, negative definite (ND) , and negative semidefinite (NSD) matrices are also convex.
