Realize Word Wrap for a Long Link Text When Using Commands of LaTeX hyperref Package
There are three commands provided in LaTeX hyperref package1, \href, \url, and \nolinkurl , to make references to URLs:
\href[options]{URL}{text}
The text is made into a hyperlink to the URL; this must be a full URL (relative to the base URL, if that is defined). The special characters # and % do not need to be escaped in any way (unless the command is used in the argument of another command).
The optional argument options recognizes the hyperref options pdfremotestartview, pdfnewwindow and the following key value options:
page: Specifies the start page number of remote PDF documents. First page is 1.ismap: Boolean key, if set totrue, the URL should be appended by the coordinates as query parameters by the PDF viewer.nextactionraw: The value of key/Nextof action dictionaries, see PDF specification.
\url{URL}
Similar to \href{URL}{\nolinkurl{URL}}. Depending on the driver \href also tries to detect the link type. Thus the result can be a url link, file link, …. The implementation makes use of the url package and its commands can be used to format and fine tune the url, but the behaviour of \url is different to the behaviour in the url package: Most importantly the hyperref \url expands commands. If the behaviour or the original \url is needed, the url package should be loaded first and the command should be copied into some alias command.
\nolinkurl{URL}
Write URL in the same way as \url described above, without creating a hyperlink.

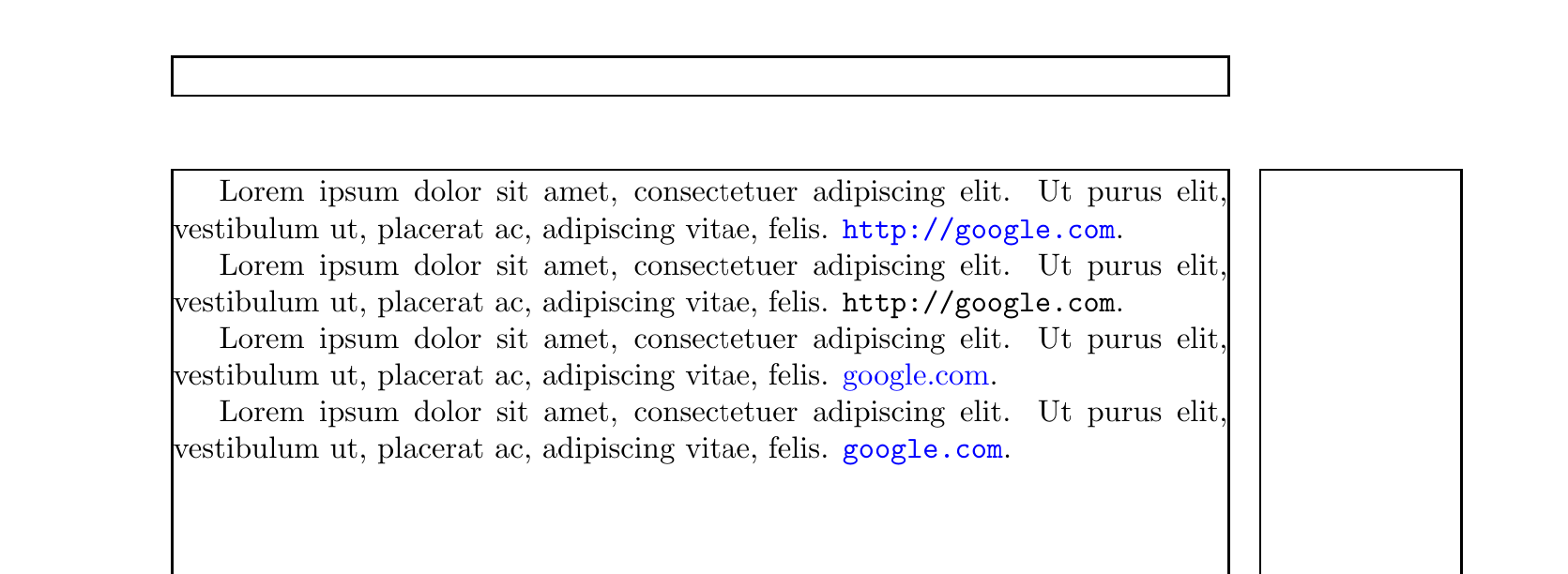

The \url command recognizes the input text as a URL and link the text to the specified URL, whereas \nolinkurl also does recognize but doesn’t create such a link. For both \url and \nolinkrul, the link text displays as the same as URL, while the \href command can change the link text by the second option.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
\documentclass{article}
\usepackage{showframe}
\usepackage{lipsum}
\usepackage[
colorlinks=true,
urlcolor=blue]{hyperref}
\begin{document}
\lipsum[1][1-2] \url{http://google.com}.
\lipsum[1][1-2] \nolinkurl{http://google.com}.
\lipsum[1][1-2] \href{http://google.com}{google.com}.
\lipsum[1][1-2] \href{http://google.com}{\nolinkurl{google.com}}.
\end{document}

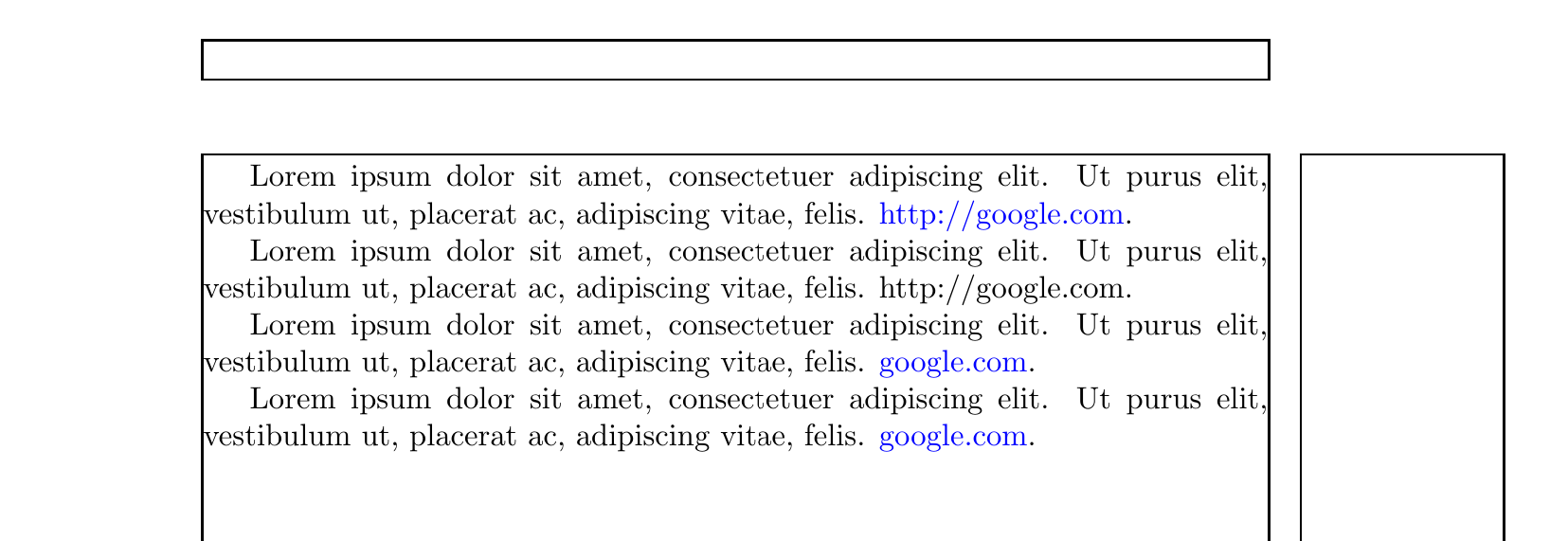

By the way, as can be seen, if we use \url and \nolinkurl, the text will show as monospaced font. We can use \urlstyle command to keep the text the same as main text2.
1
2
3
4
5
6
7
8
9
\documentclass{article}
% ...
\urlstyle{same}
\begin{document}
% ...
\end{document}

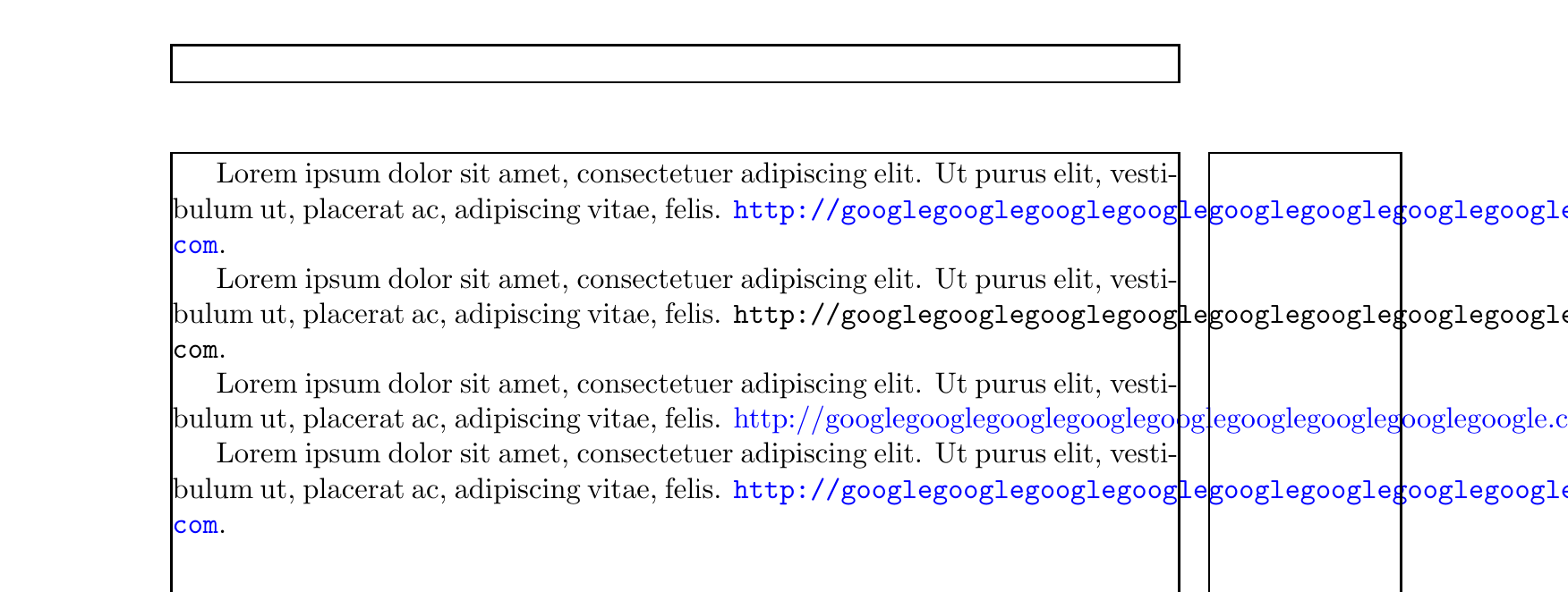

There is one problem for these commands: the link text won’t be automatically wrapped when it is too long.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
\documentclass{article}
\usepackage{showframe}
\usepackage{lipsum}
\usepackage[
colorlinks=true,
urlcolor=blue]{hyperref}
\begin{document}
\lipsum[1][1-2] \url{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}.
\lipsum[1][1-2] \nolinkurl{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}.
\lipsum[1][1-2] \href{http://google.com}{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}.
\lipsum[1][1-2] \href{http://google.com}{\nolinkurl{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}}.
\end{document}
About this point, blog3 provides a solution, that is modifying the macro \UrlBreaks of hyperref package.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
\documentclass{article}
\usepackage{showframe}
\usepackage{lipsum}
\usepackage[
colorlinks=true,
urlcolor=blue]{hyperref}
\makeatletter
\def\UrlAlphabet{%
\do\a\do\b\do\c\do\d\do\e\do\f\do\g\do\h\do\i\do\j%
\do\k\do\l\do\m\do\n\do\o\do\p\do\q\do\r\do\s\do\t%
\do\u\do\v\do\w\do\x\do\y\do\z\do\A\do\B\do\C\do\D%
\do\E\do\F\do\G\do\H\do\I\do\J\do\K\do\L\do\M\do\N%
\do\O\do\P\do\Q\do\R\do\S\do\T\do\U\do\V\do\W\do\X%
\do\Y\do\Z}
\def\UrlDigits{\do\1\do\2\do\3\do\4\do\5\do\6\do\7\do\8\do\9\do\0}
\g@addto@macro{\UrlBreaks}{\UrlOrds}
\g@addto@macro{\UrlBreaks}{\UrlAlphabet}
\g@addto@macro{\UrlBreaks}{\UrlDigits}
\makeatother
%\urlstyle{same}
\begin{document}
\lipsum[1][1-2] \url{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}.
\lipsum[1][1-2] \nolinkurl{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}.
\lipsum[1][1-2] \href{http://google.com}{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}.
\lipsum[1][1-2] \href{http://google.com}{\nolinkurl{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}}.
\end{document}

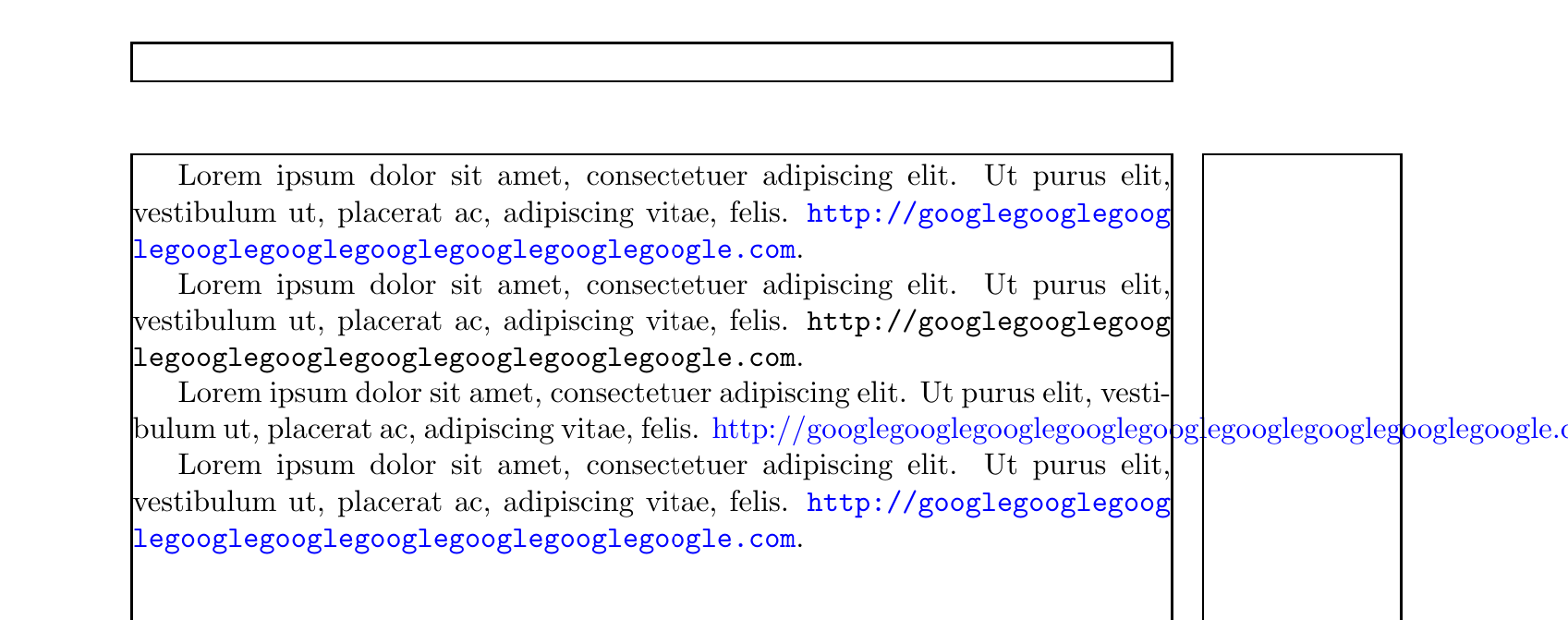

The \g@addto@macro{macro}{code} command is to “appends code to the definition of macro”4.
It can be seen that, if we use \href command, we should use it in conjunction with \nolinkurl.

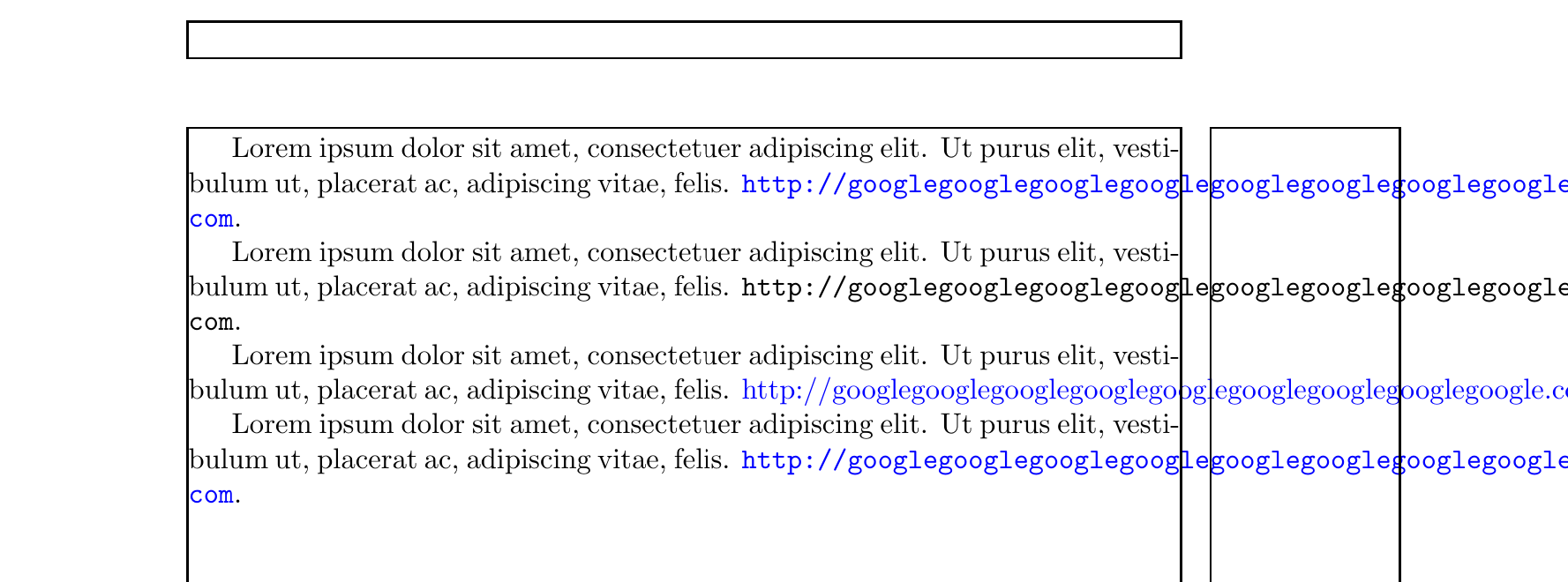

To realize word wrap, reference5 also gives a method, simply by specifying the breaklinks option of hyperref package as true. But it seem not work for my case.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
\documentclass{article}
\usepackage{showframe}
\usepackage{lipsum}
\usepackage[
breaklinks=true,
colorlinks=true,
urlcolor=blue]{hyperref}
%\urlstyle{same}
\begin{document}
\lipsum[1][1-2] \url{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}.
\lipsum[1][1-2] \nolinkurl{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}.
\lipsum[1][1-2] \href{http://google.com}{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}.
\lipsum[1][1-2] \href{http://google.com}{\nolinkurl{http://googlegooglegooglegooglegooglegooglegooglegooglegoogle.com}}.
\end{document}
