Mathematical operators
Dot product (Inner product)
1
| \langle\boldsymbol{u},\boldsymbol{v}\rangle=\boldsymbol{u}^T\boldsymbol{v}
|
Note that, the appearance of inputing < and > directly is very different from that using \langle and \rangle:
1
| <\boldsymbol{u},\boldsymbol{v}>=\boldsymbol{u}^T\boldsymbol{v}
|
Cross product (Vector product)
1
| \boldsymbol{u}\times\boldsymbol{v}
|
Or using wedge notation \wedge :
1
| \boldsymbol{u}\wedge\boldsymbol{v}
|
Kronecker product (Tensor product, Outer product) and other similar operators
Kronecker product (or tensor product):
\[A\otimes B\notag\]
or denote outer product of vectors:
1
| \boldsymbol{u}\otimes\boldsymbol{v}^T
|
and some other similar symbols :
1
| \oplus, \ominus, \odot, \oslash, \bigotimes, \bigoplus, \bigodot
|
Combination symbol
\[{n \choose k}\notag\]
Mathematical symbols
“For all” and “Exist” symbol
\[\forall, \exists\notag\]
Function mapping symbol
\[\mapsto\notag\]
Matrix environments
matrix environment
1
2
3
4
5
| \begin{matrix}
a&b&c\\
d&e&f\\
g&h&i\\
\end{matrix}
|
bmatrix environment
1
2
3
4
5
| \begin{bmatrix}
a&b&c\\
d&e&f\\
g&h&i\\
\end{bmatrix}
|
vmatrix environment
1
2
3
4
5
| \begin{vmatrix}
a&b&c\\
d&e&f\\
g&h&i\\
\end{vmatrix}
|
pmatrix environment
1
2
3
4
5
| \begin{pmatrix}
a&b&c\\
d&e&f\\
g&h&i\\
\end{pmatrix}
|
Bmatrix envrionment
1
2
3
4
5
| \begin{Bmatrix}
a&b&c\\
d&e&f\\
g&h&i\\
\end{Bmatrix}
|
Vmatrix environment
1
2
3
4
5
| \begin{Vmatrix}
a&b&c\\
d&e&f\\
g&h&i\\
\end{Vmatrix}
|
Block matrix
1
2
3
4
5
6
7
8
9
10
| \begin{pmatrix}
\begin{matrix}
1&0\\
0&1\\
\end{matrix}&0\\
0&\begin{matrix}
1&0\\
0&-1\\
\end{matrix}
\end{pmatrix}
|
1
2
3
4
5
6
7
8
9
10
| \begin{bmatrix}
\begin{pmatrix}
1&0\\
0&1\\
\end{pmatrix}&0\\
0&\begin{pmatrix}
1&0\\
0&-1\\
\end{pmatrix}
\end{bmatrix}
|

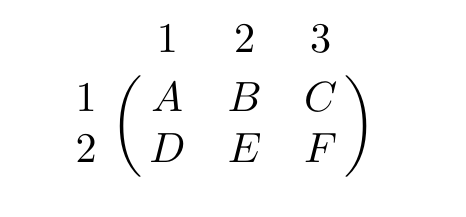

bordermatrix environment
1
2
3
4
5
6
| \begin{equation}
\bordermatrix{
& 1 & 2 & 3 \cr
1 & A & B & C \cr
2 & D & E & F \cr}
\end{equation}
|
Note that here, bordermatrix environment is not available in Markdown MathJax.
