Number Equations and Figures by Sections or Subsections in LaTeX
May. 16, 2025 • Updated May. 16, 2025
(1) Number equations and figures by sections
In LaTeX, we can use commands:
1
2
\numberwithin{equation}{section}
\numberwithin{figure}{section}
to number equations and figures by sections. Here is an example.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122

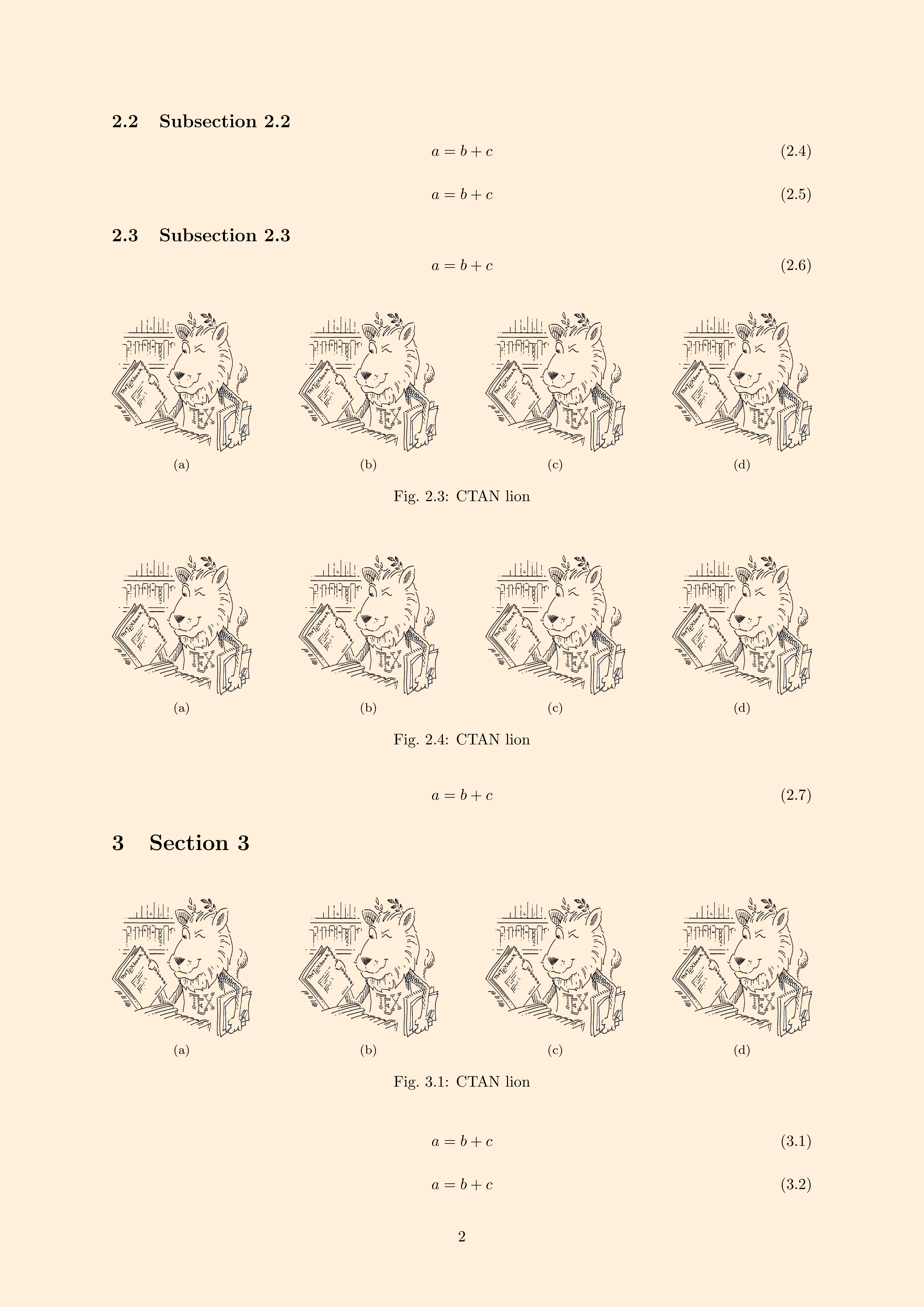

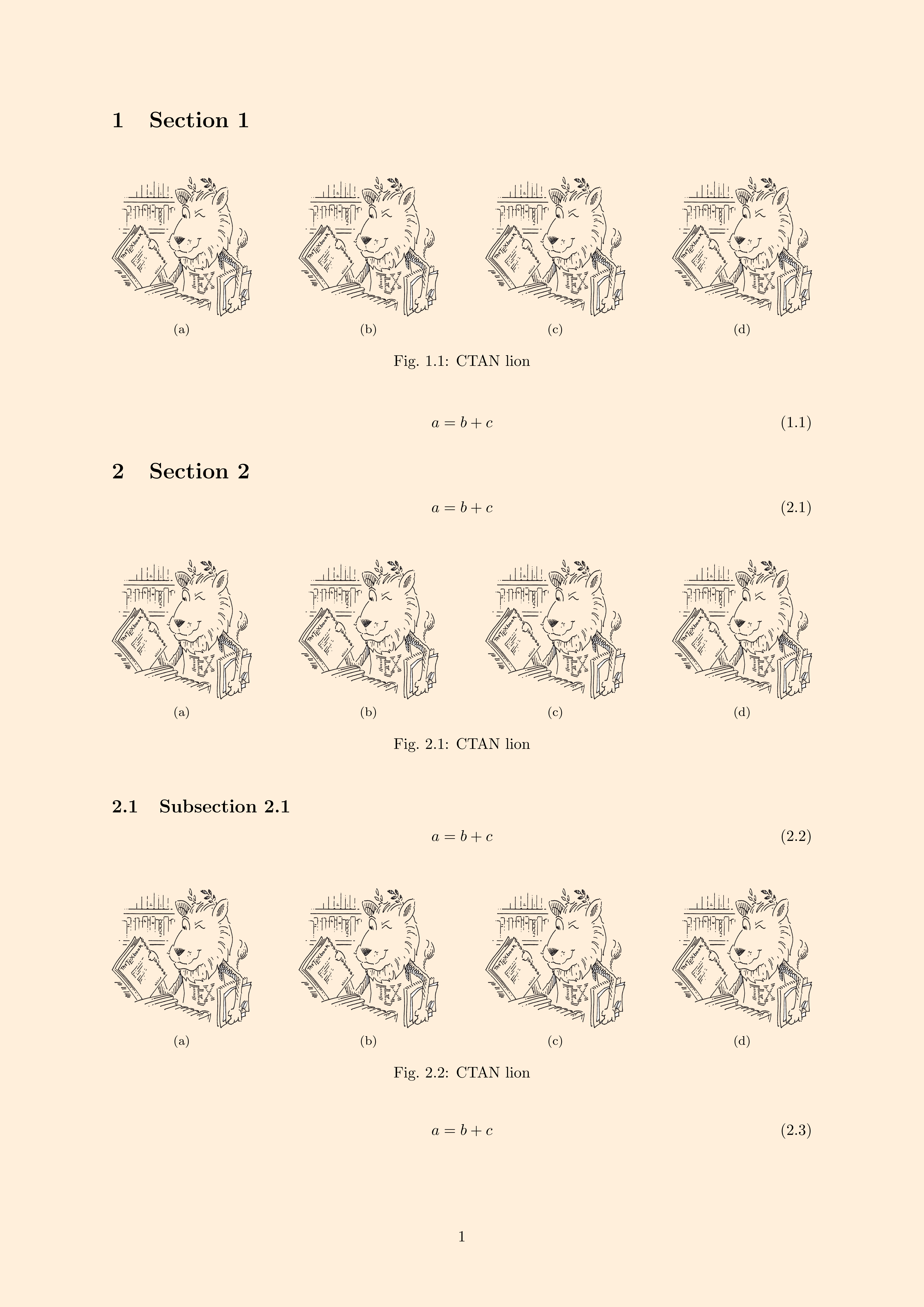

\documentclass[a4paper]{article}
\usepackage[margin=1in]{geometry}
\usepackage{amsmath}
\usepackage[colorlinks, linkcolor=blue]{hyperref}
\usepackage[x11names]{xcolor}
\pagecolor{AntiqueWhite1}
\usepackage{graphicx,subfig}
\renewcommand{\figurename}{Fig.}
\numberwithin{equation}{section}
\numberwithin{figure}{section}
\def\CE{0.20}
\begin{document}
\section{Section 1}
\begin{figure}[h]
\centering
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}\label{fig-a}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth, width=\CE\textwidth]{ctanlion.eps}}
\caption{CTAN lion}
\label{fig-1}
\end{figure}
\begin{equation}
a=b+c\\
\end{equation}
\section{Section 2}
\begin{equation}
a=b+c\\
\end{equation}
\begin{figure}[h]
\centering
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}\label{fig-a}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth, width=\CE\textwidth]{ctanlion.eps}}
\caption{CTAN lion}
\label{fig-2}
\end{figure}
\subsection{Subsection 2.1}
\begin{equation}
a=b+c\\
\end{equation}
\begin{figure}[h]
\centering
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}\label{fig-a}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth, width=\CE\textwidth]{ctanlion.eps}}
\caption{CTAN lion}
\label{fig-3}
\end{figure}
\begin{equation}
a=b+c\\
\end{equation}
\subsection{Subsection 2.2}
\begin{equation}
a=b+c\\
\end{equation}
\begin{equation}
a=b+c\\
\end{equation}
\subsection{Subsection 2.3}
\begin{equation}
a=b+c\\
\end{equation}
\begin{figure}[h]
\centering
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}\label{fig-a}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth, width=\CE\textwidth]{ctanlion.eps}}
\caption{CTAN lion}
\label{fig-4}
\end{figure}
\begin{figure}[h]
\centering
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}\label{fig-a}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth, width=\CE\textwidth]{ctanlion.eps}}
\caption{CTAN lion}
\label{fig-5}
\end{figure}
\begin{equation}
a=b+c\\
\end{equation}
\section{Section 3}
\begin{figure}[h]
\centering
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}\label{fig-a}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth,width=\CE\textwidth]{ctanlion.eps}}\hfill
\subfloat[]{\includegraphics[height=\CE\textwidth, width=\CE\textwidth]{ctanlion.eps}}
\caption{CTAN lion}
\label{fig-6}
\end{figure}
\begin{equation}
a=b+c\\
\end{equation}
\begin{equation}
a=b+c\\
\end{equation}
\end{document}
(2) Number equations and figures by subsections
Similarly, by subsections we could use commands:
1
2
3
4
5
6
% ...
\numberwithin{equation}{subsection}
\numberwithin{figure}{subsection}
% ...
