Subnumbering of Equations in LaTeX — align
environment and subequations
environment
May. 16, 2025 • Updated May. 16, 2025
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
\documentclass{article}
\usepackage{amsmath}
\usepackage[colorlinks, linkcolor=blue]{hyperref}
\begin{document}
\begin{align}
x &= t+\cos t +1 \label{eq1-1}\\
y &= 2\sin t \label{eq1-2}
\end{align}
Sub-equations $\eqref{eq1-1}$ and $\eqref{eq1-2}$.
\begin{subequations}\label{eq2}
\begin{align}
x &= t+\cos t +1 \label{eq2-1}\\
y &= 2\sin t \label{eq2-2}
\end{align}
\end{subequations}

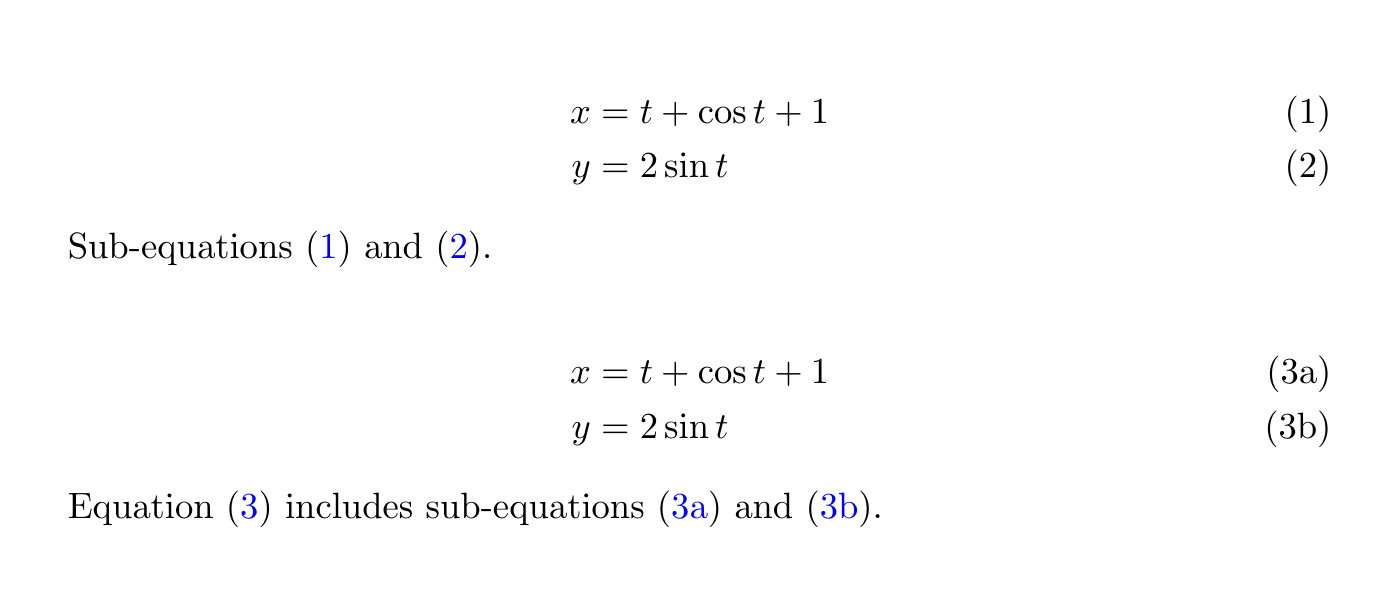

Equation $\eqref{eq2}$ includes sub-equations $\eqref{eq2-1}$ and $\eqref{eq2-2}$.
\end{document}
Besides, if we want to change the subnumbering format, for the convenience of use we can define a new environment mysubeq
, because the subnumbering format should be set internally in the subequations
environment. For example:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
\documentclass{article}
\usepackage{amsmath}
\usepackage[colorlinks, linkcolor=blue]{hyperref}
\newenvironment{mysubeqn}%
{\begin{subequations}
\renewcommand\theequation{\theparentequation-\roman{equation}}}%
{\end{subequations}}
\begin{document}
\begin{align}
x &= t+\cos t +1 \label{eq1-1}\\
y &= 2\sin t \label{eq1-2}
\end{align}
Sub-equations $\eqref{eq1-1}$ and $\eqref{eq1-2}$.
\begin{subequations}\label{eq2}
\begin{align}
x &= t+\cos t +1 \label{eq2-1}\\
y &= 2\sin t \label{eq2-2}
\end{align}
\end{subequations}
Equation $\eqref{eq2}$ includes sub-equations $\eqref{eq2-1}$ and $\eqref{eq2-2}$.
\begin{mysubeqn}\label{eq3}
\begin{align}
x &= t+\cos t +1 \label{eq3-1}\\
y &= 2\sin t \label{eq3-2}
\end{align}
\end{mysubeqn}
Equation $\eqref{eq3}$ includes sub-equations $\eqref{eq3-1}$ and $\eqref{eq3-2}$.
\end{document}
References
- LaTeX入门, 刘海洋编著, pp. 265-267, p. 275.
- Subnumbering of equations.
- Subequations (LaTeX environment).
