Specify Local Storage Directory of Images in Markdown Files when Markdown Editing with VS Code

To edit Markdown files in VS Code, extension Markdown All in One¹ is commonly used. By using this extension, if users take a screenshot (or copy any image) and then paste it in Markdown file, a PNG image will be automatically stored in the same folder as the Markdown file being edited.

For example, I new a folder named folder and in which create a Markdown file markdown.md. Then, if I take a screenshot and paste it ([Ctrl] + [V]) in markdown.md, a piece of markdown code is generated:

1
![alt text](image.png)

and at the same time, a PNG file named image.png appears in folder:

1
tree /f

1
2
3
4
5
6
7
卷 新加卷 的文件夹 PATH 列表
卷序列号为 1CB5-B6F7
H:.
    markdown.md

没有子文件夹

I think it’s not an orderly way to organize files if there are several Markdown files and image files (and maybe other types of files) in the same folder. Therefore, I want to find a way which can automatically store images in a uniform subfolder. Luckily, another extension Markdown Image² can help to realize this point.

Markdown Image supports saving images locally or uploading them to image hosting service, like GitHub, Imgur, SM.MS, Qiniu, Upyun, etc.². For ‘local’ method, users have two ways to specify the directory where images to be stored: one is specifying an absolute path, and all images saved by the extension are put there, which is a default method; another one is by specifying a relative path, for example, a subfolder under the same folder as the Markdown file being edited.

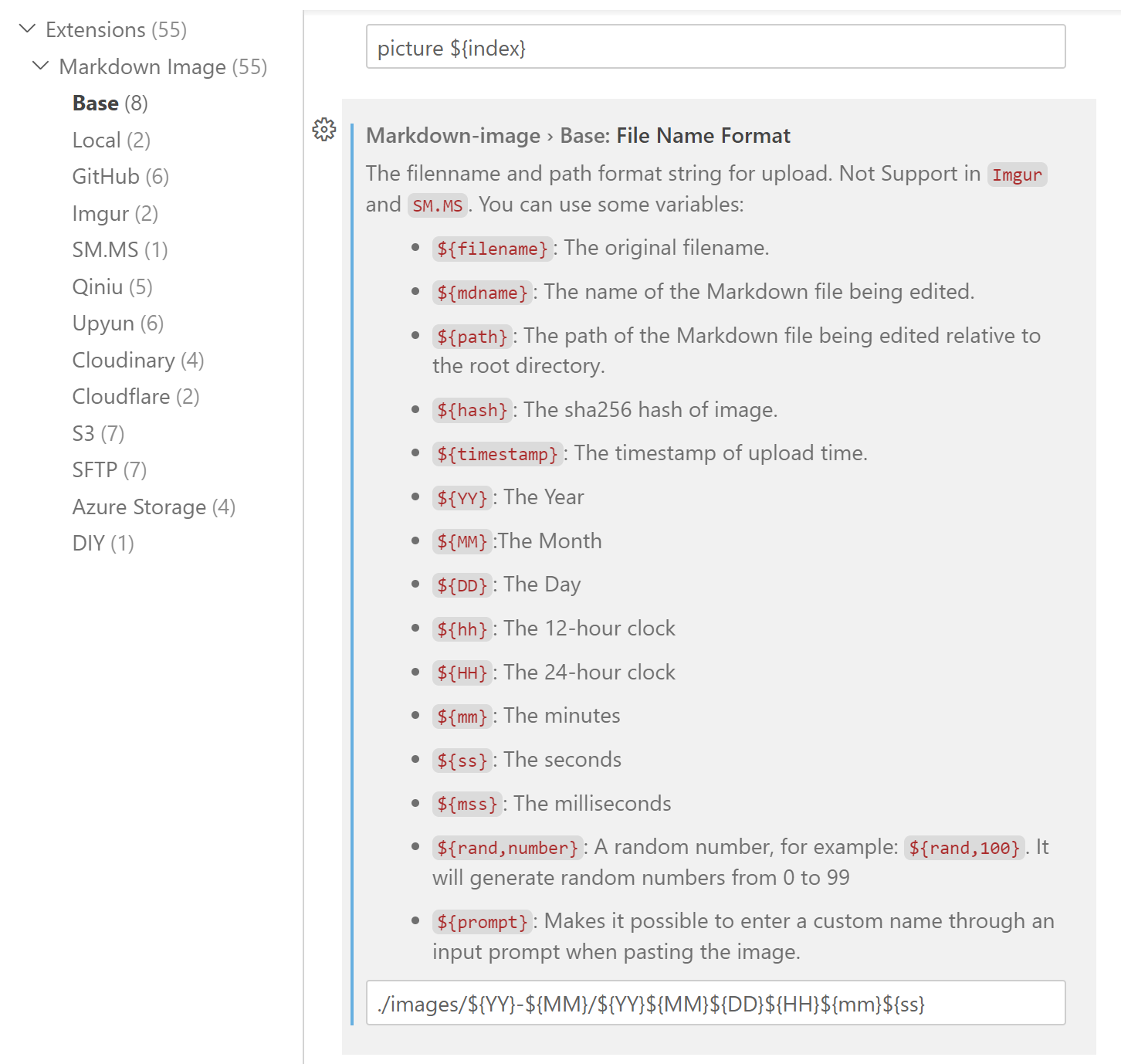

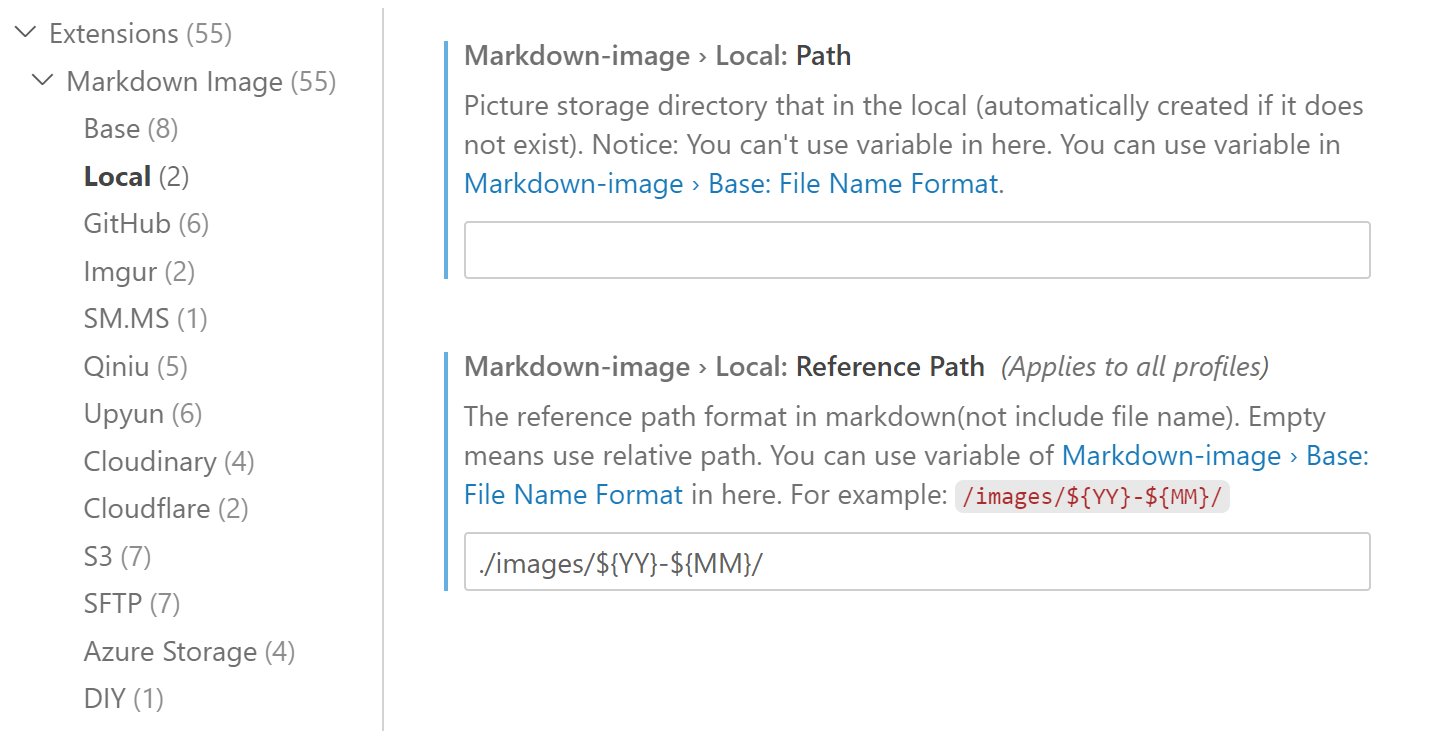

To realize the second method, I change following settings:

Specifically:

• Base: File Name Format: ./images/${YY}-${MM}/${YY}${MM}${DD}${HH}${mm}${ss}.
• Local: Path: blank.
• Local: Reference path: ./images/${YY}-${MM}/.

At this time, if I take a screenshot and paste it in Markdown file again (note that, to use the this extension, users should copy by keys [Alt] + [Shift] + [V], or right-click menu Paste Image, rather than normal [Ctrl] + [V]), image path in Markdown file looks like:

1
![picture 0](./images/2024-07/20240721201149.png)

and a PNG file 20240721201149.png is saved in the newly created subfolder ./images/2024-07/:

1
tree /f

1
2
3
4
5
6
7
8
9
卷 新加卷 的文件夹 PATH 列表
卷序列号为 1CB5-B6F7
H:.
│  image.png
│  markdown.md
│
└─images
    └─2024-07

More organized, isn’t it?

1
2
3

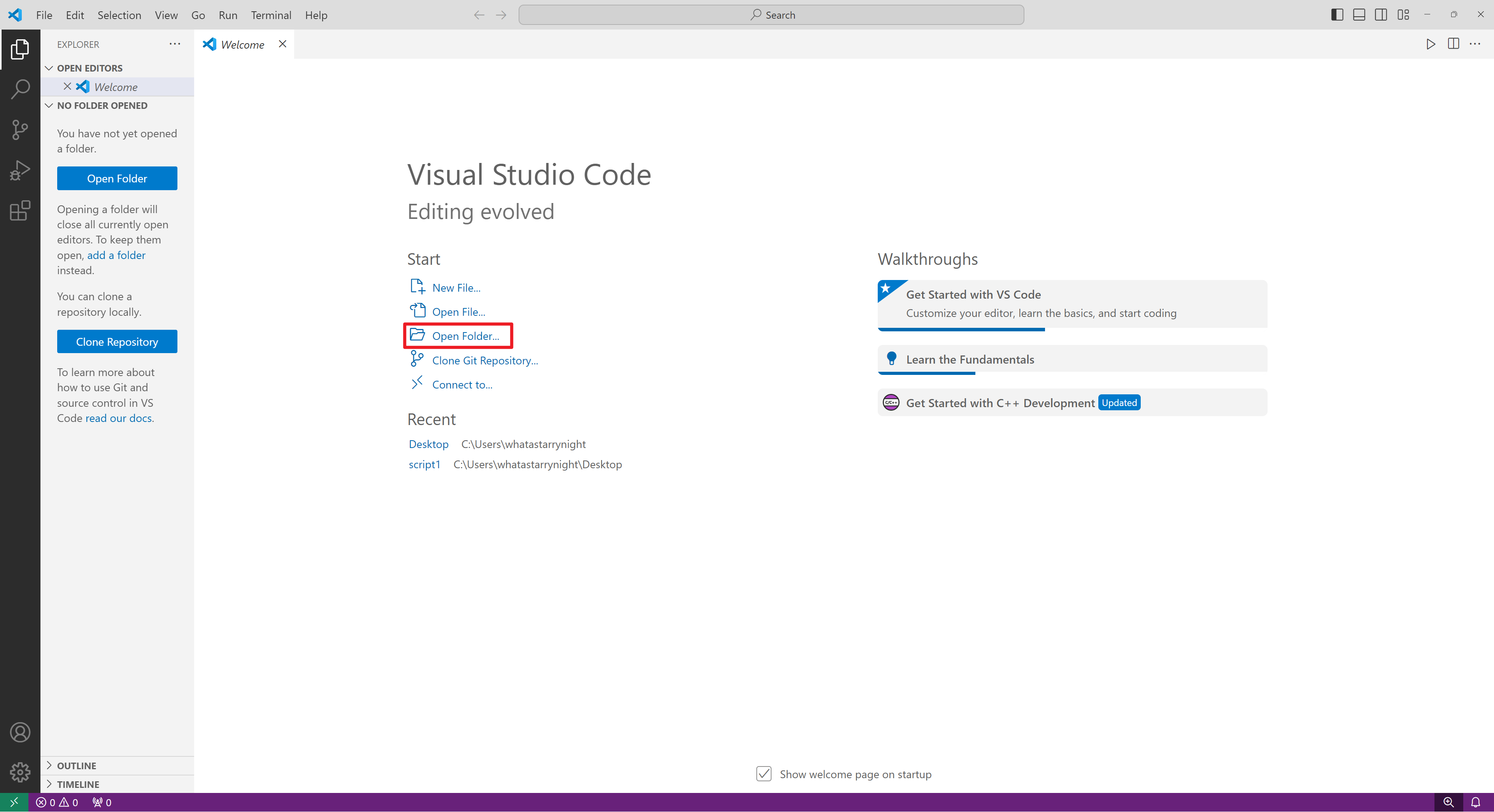

Please Open the project of the file with folder.

Source: Markdown Image
