MATLAB private functions

Private function (in private subfolder)¹ is one of MATLAB functions types², and is “available only to functions in the folder immediately above the private folder.”². Generally speaking, when we call a function in MATLAB, the software will search for the invoked function in the search path³ and the current folder. If user-defined functions are put in a subfolder of current folder, there will be an error when we call them in the script of current folder. But it is okay if the subfolder name is private.

For example, in the current folder, we can new a subfolder private and a script file script1.m. Then, a function file helperAdd.m is defined in the subfolder private:

1
2
3
function c = helperAdd(a,b)
c = a+b;
end

Next, we invoke the helperAdd function in script1.m:

1
2
3
4
% script1.m
clc,clear,close all

c = helperAdd(1,2);

Variable c is:

1
2
3
>> c
c =
     3

So, it really works. BUT, if we call the helperAdd function in the command window (current folder) instead, MATLAB will throw an error, saying:

1
2
3
4
5
>> helperAdd(1,2)
'helperAdd' is not found in the current folder or on the MATLAB path, but exists in:
    C:\xxx\xxxx\xxxx\xxxx\private

Change the MATLAB current folder.

This feature is different from the way directly defining the helperAdd function in the current folder, or rather, private functions in private subfolder are not available in the command window whose path is current folder.

On the other hand, although MATLAB will search for the private subfolder when running script1.m in this example, the private subfolder is not in MATLAB search path³. We can verify this point by inserting path function⁴ in the helperAdd function, to display the search path in command window when script1.m calls helperAdd:

1
2
3
4
function c = helperAdd(a,b)
c = a+b;
path
end

There is a long list showing every search path in the command window, but private subfolder isn’t in it.

By the way, it is another way to obtain the MATLAB search path by viewing pathdef.m file ⁵.

So, the process of MATLAB searching helperAdd function is not realized by TEMPORARILY adding private subfolder into the search path (and then remove it after calling. I think this is a way, although sounds complicated), it has another searching mechanism.

Anyway, it is a concise way to organize user-defined functions in some complicated programming scenarios by putting them together in private subfolder. But there is a small point, in my actual use, I found the class definition .m files cannot be put in the private subfolder, otherwise the class cannot be instantiated correctly, and an error will occur, “Class definition files cannot be contained in a private directory.” This caveat sounds trivial, but still should be pointed out, literally, private function is a kind of special FUNCTION, and class definition .m files are not functions for MATLAB.

But on the other hand, MATLAB seemingly views the script files as functions. For example, if we create a script2.m file in private subfolder, whose content is:

1
2
% script2.m in `private` subfolder
disp("This is a test.")

Then, we invoke it in script1.m script file:

1
2
3
% script1.m
clc,clear,close all
script2

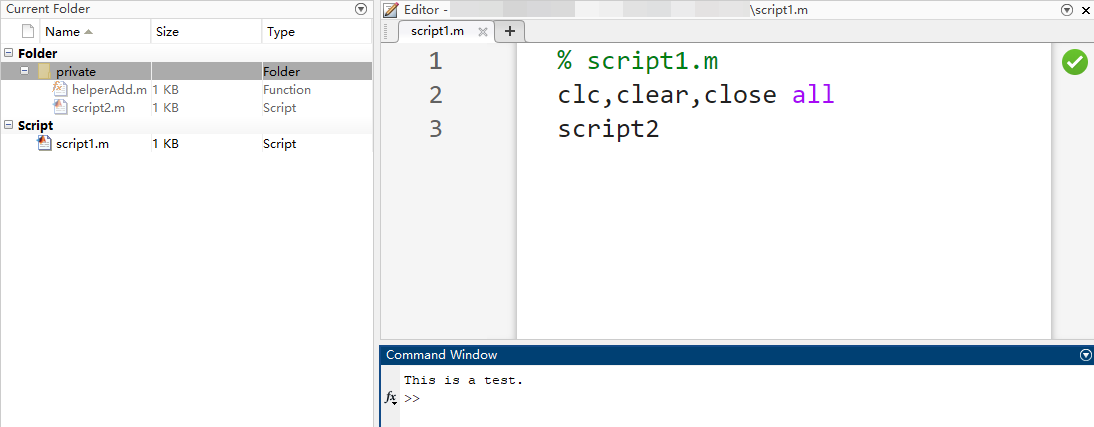

and it works:

MATLAB function precedence order

MATLAB can find private functions in the private subfolder, but the priority problem of function execution exists when there are several functions have the same file name. In fact, a webpage in MATLAB documentation⁶ provides a detailed description about it.

In the case of several functions in current scope having the same name, MATLAB determines the precedence order by the following list:

(1) Variables: Before assuming that a name matches a function, MATLAB checks for a variable with that name in the current space. NOTE: If you create a variable with the same name as a function, MATLAB cannot run that function until you clear the variable from memory.

Or rather, variables have a higher searching priority than ALL types of functions, this is why users should avoid defining the variables has the same name as built-in functions. A common case is, some users, myself included, habitually define i as the for loop variable; on another hand, i is a built-in imaginary unit (and so is j). But the for loop can work well, because MATLAB will first check variables when encountering i.

By the way, as for built-in imaginary unit, individual symbol i or j is also not recommended. For example, if we want to create a variable a representing $5\mathrm{i}$ by a=5*i;, MATLAB Code Analyzer will warns that, “For improved robustness, considering replacing i and j by 1i.” So, it’s better to use a = 5i; and a = 5*1i; instead, although it looks somewhat special because a valid variable name in MATLAB must start with a letter⁷.

(2) Function or class whose name matches an explicitly imported name (which is imported by import function⁸)

(3) Nested functions within the current function

(4) Local functions within the current file

(5) Function or class whose name matches a wildcard-based imported name

(6) Private functions

(7) Object functions

(8) Class constructors in @-folders

(9) Loaded Simulink® models

(10) Functions in the current folder

(11) Functions elsewhere on the path, in order of appearance

The above bold-blue function types are the ones that relatively commonly used in practice. An somewhat unexpected point is that, private functions (6) even have a higher position than functions in the current folder (10).

At times, there exist some files with the same name but with different file types (different file suffixes) within the same folder, and MATLAB will equally view some of which as functions. Similarly, in this case, MATLAB will also consider them in a precedence order:

(1) Built-in function

(2) MEX-function

(3) Simulink model files that are not loaded, with file types in this order:

1. SLX file
2. MDL file

(4) Stateflow® chart with a .sfx extension

(5) App file (.mlapp) created using MATLAB App Designer

(6) Program file with a .mlx extension

MATLAB .mlx file is a live code file⁹, which some users really like, but I don’t get used to it. At least not yet.

(7) P-file (that is, an encoded program file with a `.p` extension)

MATLAB .p file is a content-obscured version of source file .m file¹⁰¹¹.

(8) Program file with a `.m` extension
